KOSO NORTH AMERICA

D2 LCD Multifunction Meter

Cod ProducătorBA080010
Cod ProdusCHM-KOSONORT-BA080010

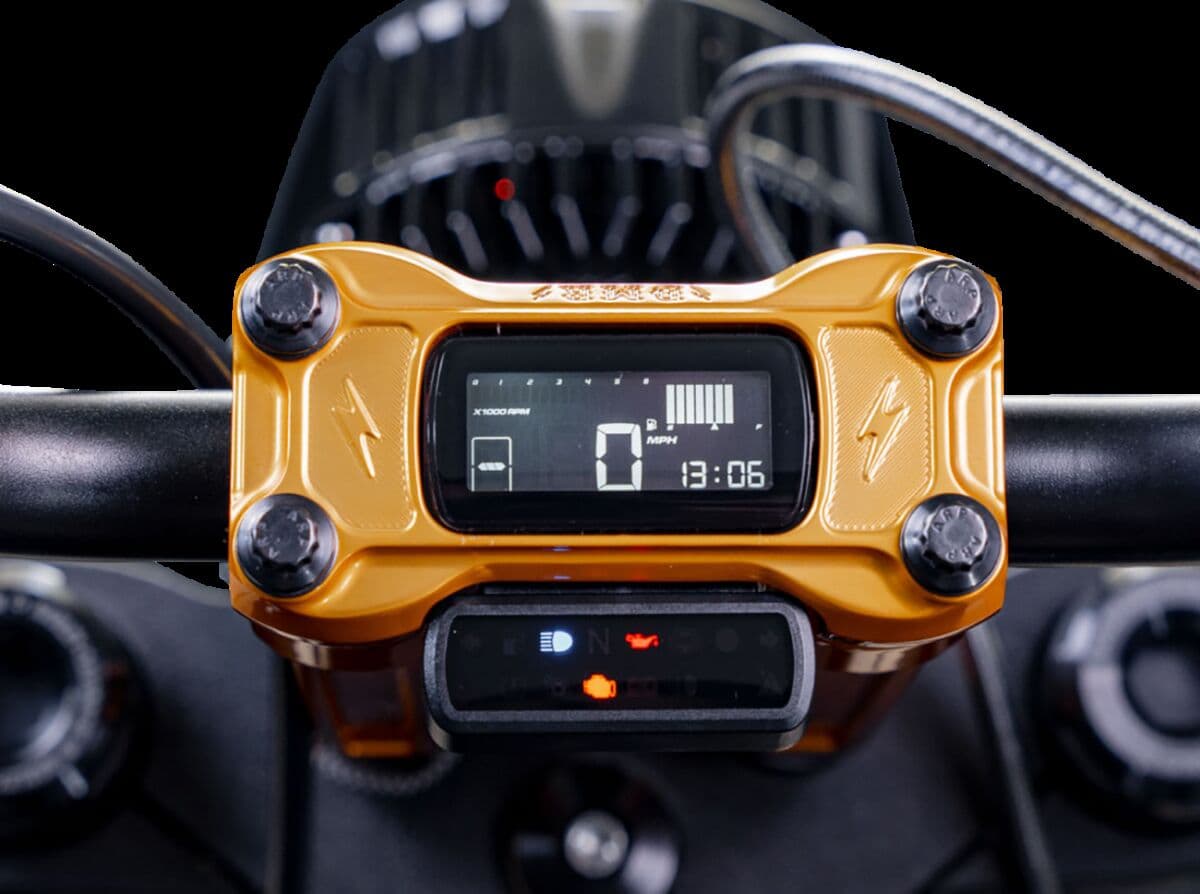

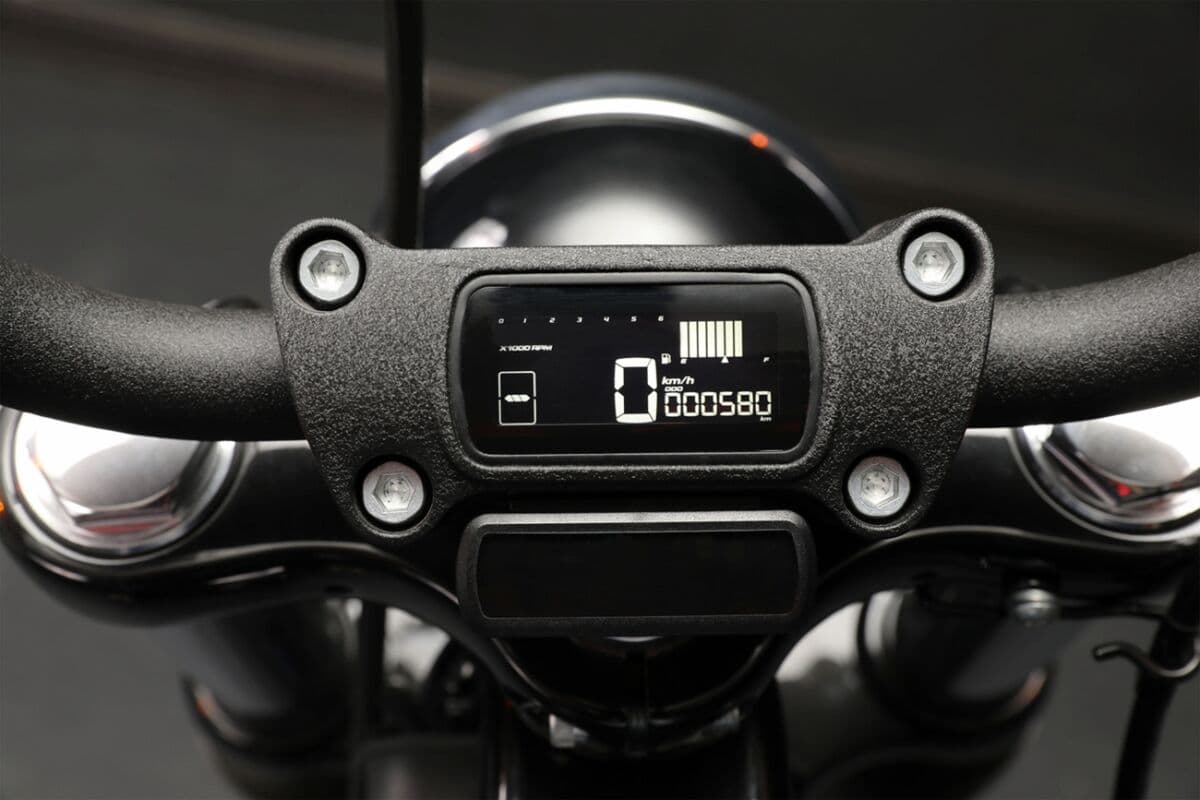

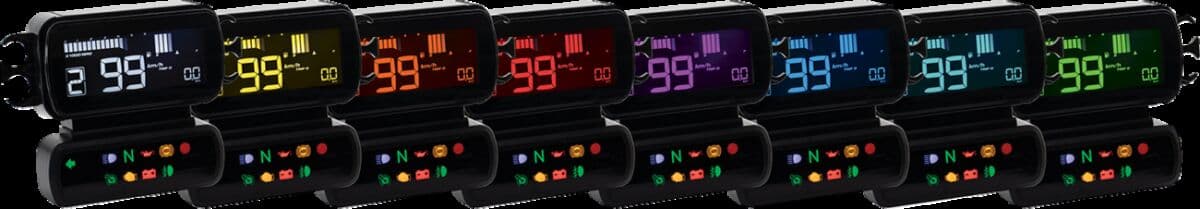

  • High quality plug & play meter that is equipped with an 8-color changeable LCD display

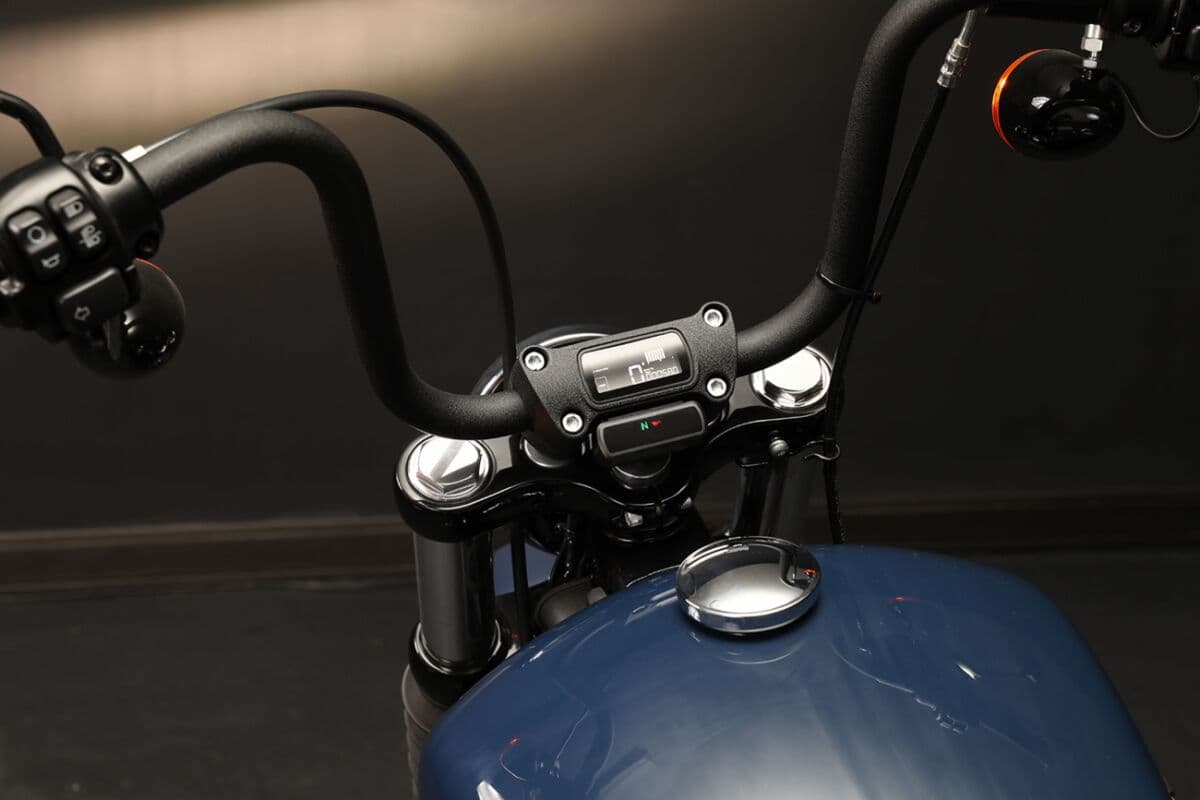

  • Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)
  • Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
  • Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
  • Plugs directly into the stock harness and works directly with CANBUS system
  • Display range: 0-124 mph
  • Effective temperature range: -4°F-185°F (-20°C-85°C)
  • 12VDC battery voltage
  • Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
  • XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.

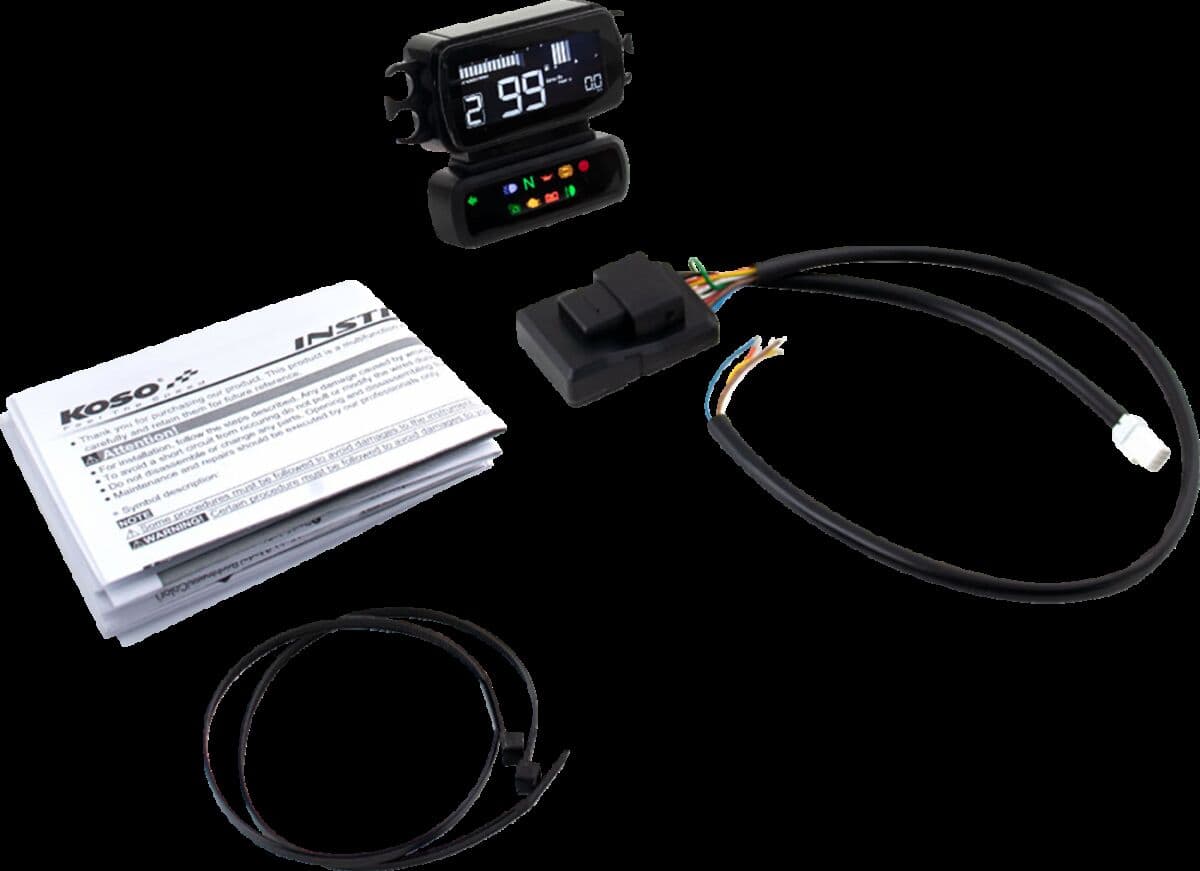

  • Kit contains: 1 x LCD Meter, 1 x Meter adapter box and 1 x Zip tie (4.6 x 300mm)
  • The installation images are for demonstration purposes only. The plate is not included.


    • Compatibilitate vehicul

    Selectează-ți vehiculul în bara de sus pentru a verifica dacă această piesă se potrivește.

    Această piesă este compatibilă cu 72 modele de motociclete.
    • HARLEY DAVIDSON FLHR 14502004–2006
    • HARLEY DAVIDSON FLHR 15842007–2011
    • HARLEY DAVIDSON FLHR 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHR 16902012–2013
    • HARLEY DAVIDSON FLHR 1690 ABS2012–2013
    • HARLEY DAVIDSON FLHRC 14502004
    • HARLEY DAVIDSON FLHRC 15842007–2010
    • HARLEY DAVIDSON FLHRC 1584 ABS2008–2011
    • HARLEY DAVIDSON FLHRC 1690 ABS2011–2013
    • HARLEY DAVIDSON FLHRCI 1450 EFI2005–2006
    • HARLEY DAVIDSON FLHRI 1450 EFI2005–2006
    • HARLEY DAVIDSON FLHRS 14502004–2006
    • HARLEY DAVIDSON FLHRS 15842007
    • HARLEY DAVIDSON FLHRSI 1450 EFI2005–2006
    • HARLEY DAVIDSON FLST 14502006
    • HARLEY DAVIDSON FLSTC 14502004–2006
    • HARLEY DAVIDSON FLSTC 15842007–2010
    • HARLEY DAVIDSON FLSTCI 1450 EFI2004–2006
    • HARLEY DAVIDSON FLSTF 14502004–2006
    • HARLEY DAVIDSON FLSTF 15842007–2009
    • HARLEY DAVIDSON FLSTFI 1450 EFI2004–2006
    • HARLEY DAVIDSON FLSTFI 1550 EFI2005
    • HARLEY DAVIDSON FLSTI 1450 EFI2006
    • HARLEY DAVIDSON FLSTN 14502005–2006
    • HARLEY DAVIDSON FLSTN 15842007–2010
    • HARLEY DAVIDSON FLSTNI 1450 EFI2005–2006
    • HARLEY DAVIDSON FLSTSB 15842008–2011
    • HARLEY DAVIDSON FLSTSC 14502005–2006
    • HARLEY DAVIDSON FLSTSC 15842007
    • HARLEY DAVIDSON FLSTSCI 1450 EFI2005–2006
    • HARLEY DAVIDSON FXCW 15842008–2009
    • HARLEY DAVIDSON FXCWC 15842008–2010
    • HARLEY DAVIDSON FXD 14502004–2005
    • HARLEY DAVIDSON FXD 15842007–2010
    • HARLEY DAVIDSON FXDB 15842007–2011
    • HARLEY DAVIDSON FXDBI 1450 EFI2006
    • HARLEY DAVIDSON FXDC 14502005
    • HARLEY DAVIDSON FXDC 15842007–2011
    • HARLEY DAVIDSON FXDCI 1450 EFI2005–2006
    • HARLEY DAVIDSON FXDF 15842008–2009, 2011
    • HARLEY DAVIDSON FXDI 1450 EFI2004–2006
    • HARLEY DAVIDSON FXDI35 1450 EFI2006
    • HARLEY DAVIDSON FXDL 14502004–2005
    • HARLEY DAVIDSON FXDL 15842007–2009
    • HARLEY DAVIDSON FXDLI 1450 EFI2004–2006
    • HARLEY DAVIDSON FXDWG 14502004–2005
    • HARLEY DAVIDSON FXDWG 15842007–2008, 2010–2011
    • HARLEY DAVIDSON FXDWGI 1450 EFI2004–2006
    • HARLEY DAVIDSON FXDX 14502004
    • HARLEY DAVIDSON FXDXI 1450 EFI2004–2005
    • HARLEY DAVIDSON FXST 14502004–2006
    • HARLEY DAVIDSON FXST 15842007–2008
    • HARLEY DAVIDSON FXSTB 14502004–2006
    • HARLEY DAVIDSON FXSTB 15842007–2009
    • HARLEY DAVIDSON FXSTBI 1450 EFI2004–2006
    • HARLEY DAVIDSON FXSTC 15842007–2010
    • HARLEY DAVIDSON FXSTD 14502004–2006
    • HARLEY DAVIDSON FXSTD 15842007
    • HARLEY DAVIDSON FXSTDI 1450 EFI2004–2006
    • HARLEY DAVIDSON FXSTI 1450 EFI2004–2006
    • HARLEY DAVIDSON FXSTS 14502004–2006
    • HARLEY DAVIDSON FXSTSI 1450 EFI2004–2006
    • HARLEY DAVIDSON XL 1200 C2004–2013
    • HARLEY DAVIDSON XL 1200 L2006–2011
    • HARLEY DAVIDSON XL 1200 N2007–2012
    • HARLEY DAVIDSON XL 1200 V2012–2013
    • HARLEY DAVIDSON XL 1200 X2010–2013
    • HARLEY DAVIDSON XL 8832004–2008
    • HARLEY DAVIDSON XL 883 C2004–2009
    • HARLEY DAVIDSON XL 883 L2005–2013
    • HARLEY DAVIDSON XL 883 N2009–2013
    • HARLEY DAVIDSON XL 883 R2004, 2006–2007
    În stoc
    5 în stoc
    Livrare în 1-3 zile lucrătoare
    RON 1,402.12
    • Plată online securizatăPlățile cu cardul sunt procesate în siguranță prin Stripe.
      stripe
    • Plătește în rate cu KlarnaAlege Klarna la finalizarea comenzii.
      Klarna.

    Specificații

    Specificații

    TypeMulti-Function Speedometer
    Depth66 mm (2-5/8")
    ModelD2
    UnitsKit
    Width27 mm (1-1/16")
    Length88 mm (3-7/16")
    Face ColorBlack
    Calibration0 kph - 199 kph (0 mph - 124 mph)
    Depth Metric66 mm
    Product NameGauge
    Riding StyleStreet
    Width Metric27 mm
    Housing ColorBlack
    Length Metric88 mm
    Depth Imperial2-5/8"
    Research ValueFinalized
    Width Imperial1-1/16"
    Length Imperial3-7/16"
    Calibration Metric0 kph - 199 kph
    Calibration Imperial0 mph - 124 mph
