KOSO NORTH AMERICA

D2 LCD Multifunction Meter

Cod ProducătorBA080000
Cod ProdusCHM-KOSONORT-BA080000
  • High quality plug & play meter that is equipped with an 8-color changeable LCD display
  • Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)
  • Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator
  • Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike
  • Plugs directly into the stock harness and works directly with CANBUS system
  • Display range: 0-124 mph
  • Effective temperature range: -4°F-185°F (-20°C-85°C)
  • 12VDC battery voltage
  • Measures 3-7/16” L x 1-1/16” W x 2-5/8” H
  • XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.
  • Kit contains: 1 x LCD Meter, 1 x Meter adapter box and 1 x Zip tie (4.6 x 300mm)

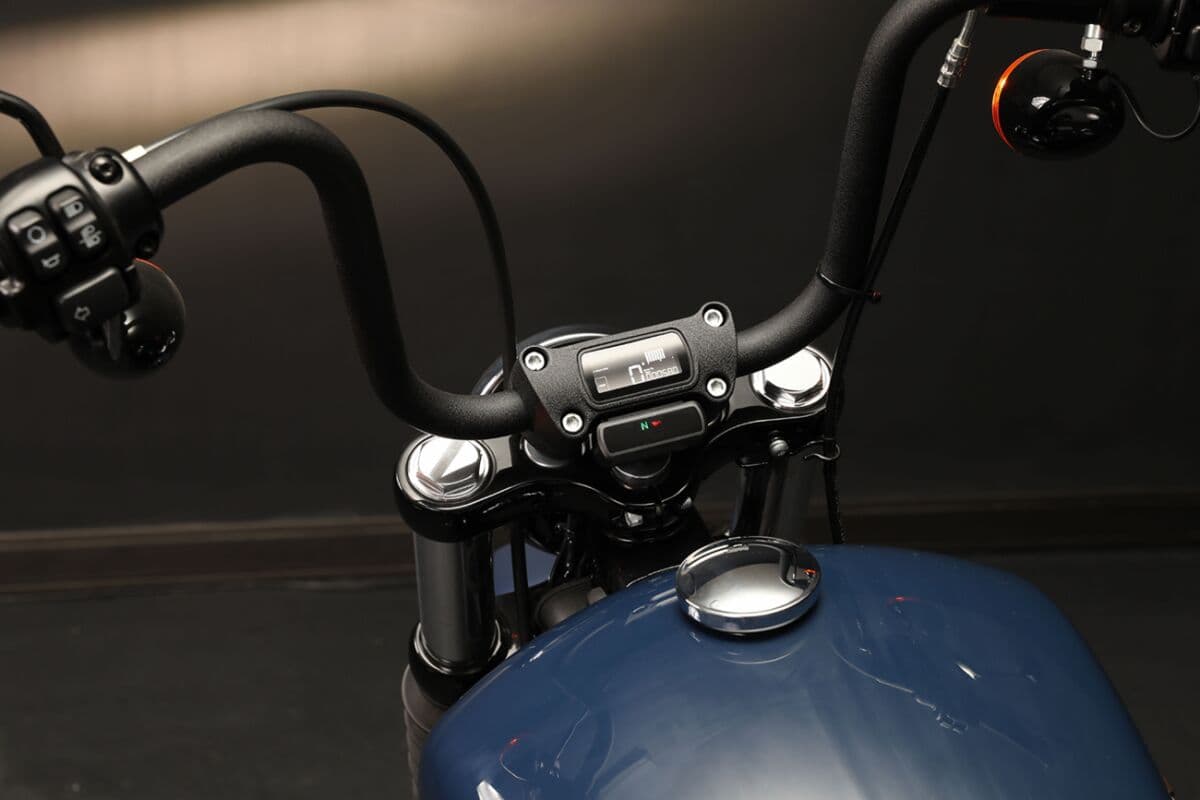

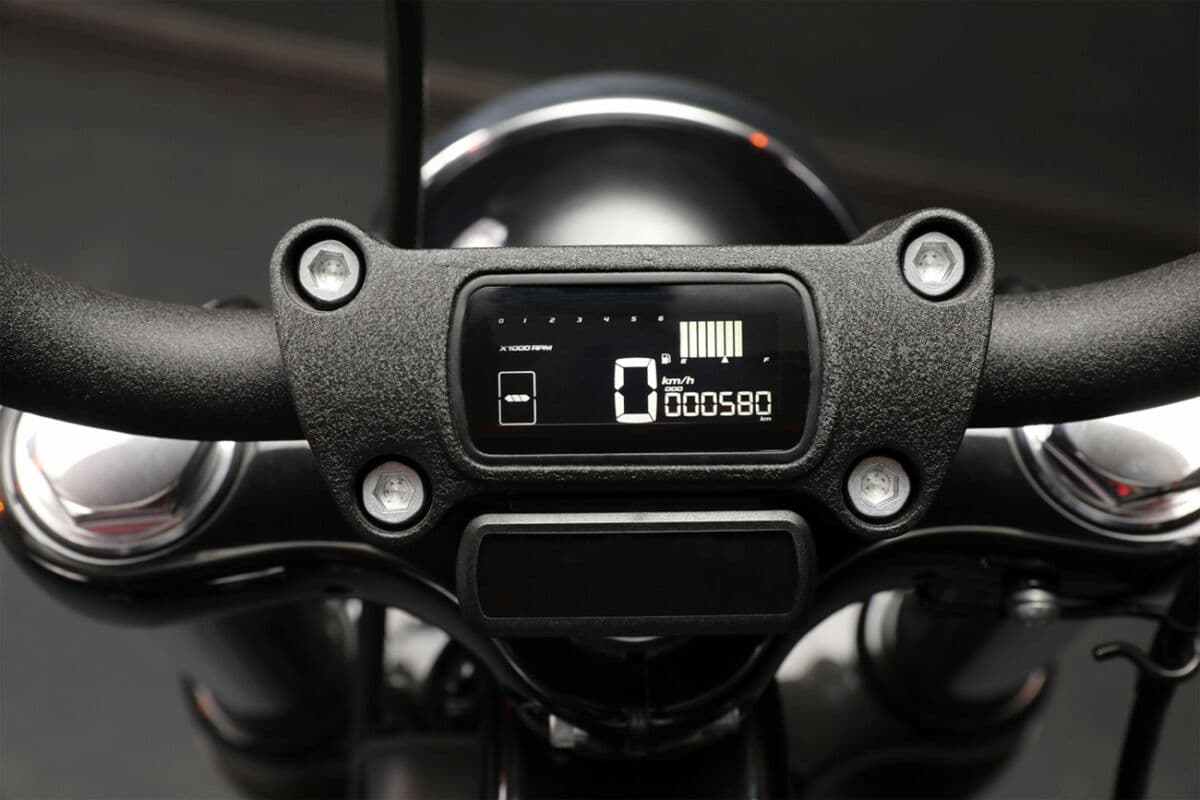

  • The installation images are for demonstration purposes only. The plate is not included.


    • Fits models with traction control.

    Compatibilitate vehicul

    Selectează-ți vehiculul în bara de sus pentru a verifica dacă această piesă se potrivește.

    Această piesă este compatibilă cu 9 modele de motociclete.
    • HARLEY DAVIDSON FXBB 1750 ABS2018–2020
    • HARLEY DAVIDSON FXBB 1923 ABS2025
    • HARLEY DAVIDSON FXBBS 18682021
    • HARLEY DAVIDSON FXBBS 1868 ABS2021–2024
    • HARLEY DAVIDSON FXBR 1750 ABS2018–2019
    • HARLEY DAVIDSON FXLRST 1923 ABS2022–2024
    • HARLEY DAVIDSON FXRST 1923 ABS2022
    • HARLEY DAVIDSON FXST 17502021
    • HARLEY DAVIDSON FXST 1750 ABS2020–2022
    În stoc
    15 în stoc
    Livrare în 1-3 zile lucrătoare
    RON 1,073.23
    • Plată online securizatăPlățile cu cardul sunt procesate în siguranță prin Stripe.
      stripe
    • Plătește în rate cu KlarnaAlege Klarna la finalizarea comenzii.
      Klarna.

    Specificații

    Specificații

    TypeMulti-Function Speedometer
    Depth66 mm (2-5/8")
    ModelD2
    UnitsKit
    Width27 mm (1-1/16")
    Length88 mm (3-7/16")
    Face ColorBlack
    Calibration0 kph - 199 kph (0 mph - 124 mph)
    Depth Metric66 mm
    Product NameGauge
    Riding StyleStreet
    Width Metric27 mm
    Housing ColorBlack
    Length Metric88 mm
    Depth Imperial2-5/8"
    Research ValueFinalized
    Width Imperial1-1/16"
    Length Imperial3-7/16"
    Calibration Metric0 kph - 199 kph
    Calibration Imperial0 mph - 124 mph
